| DKJ欧式接头 |
|
|

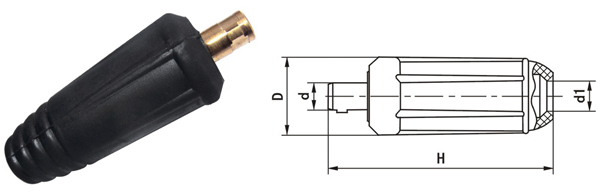

型号 |
额定
电流 |
适用电缆标准截面mm2 |
d |
D |
d1 |
H1 |
H |
|
DKJ10-25 |
200A |
10-25 |
9 |
26 |
11 |
75 |
85 |
|
DKJ35-50 |
315A |
35-50 |
13 |
34.5 |
12.5 |
90 |
109 |
|
DKJ50-70 |
400A |
50-70 |
13 |
38 |
18.5 |
91.5 |
110.5 |
|
DKJ70-95 |
500A |
70-95 |
13 |
40.5 |
16.5 |
96 |
115 |
|

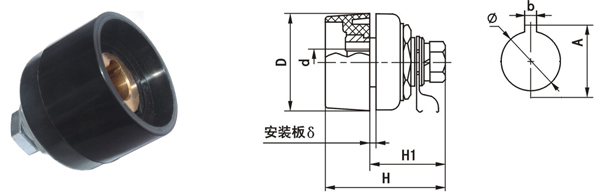

型号 |
额定
电流 |
适用电缆标准截面mm2 |
d |
D |
H |
H1 |
δ |
D |
插头安装尺寸（mm） |
|
b |
A |
φ |
|
DKJ10-25 |
200A |
10-25 |
9 |
32.4 |
37.3 |
33.3 |
1-1.5 |
32.5 |
6 |
22.2 |
19.3 |
|
DKJ35-50 |
315A |
35-50 |
13 |
40 |
52 |
39 |
1-4 |
38 |
6 |
32.8 |
30 |
|
DKJ50-70 |
400A |
50-70 |
13 |
49 |
58 |
34.3 |
1-4 |
40 |
6 |
33 |
30 |
|
DKJ70-95 |
500A |
70-95 |
13 |
50 |
59 |
35.3 |
1-4 |
43 |
6 |
32.7 |
30 | [1] |
|
| |
|
|
|
